This project was sent to me by Jace Bigelow in Burlington, Vermont. Jace writes: “I have always been interested in jet engines and in college (1996) I was searching the internet about turbines and found Larry Berg's and Mark Nye's engines. Since then I have been collecting parts little by little. It has been a challenge building a running turbine without a welder. I had to use common threaded pipe. I never kept track of the cost because of countless trips to every hardware store imaginable.

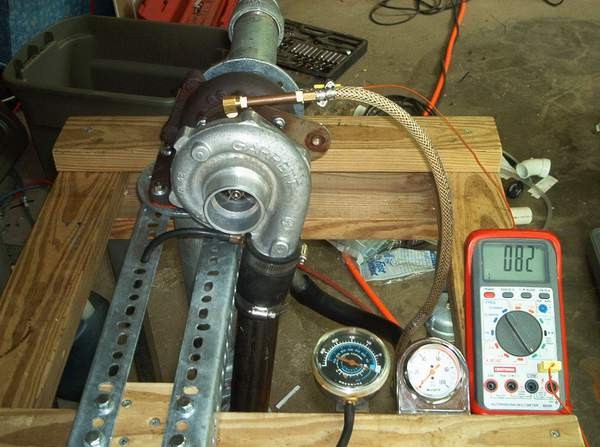

I started with a small IHI turbo from a 1.7 Liter John Deere diesel engine, but it didn't work; it did not flow enough air. This Garrett turbo is off a Chrysler car, and I swapped the compressor housing with one from a Saab because I liked the inlet better. The compressor is a .42 and the exhaust is a .48. These are very very common and there are tons on eBay. The oil pump is a power steering pump from a Japanese car. I spin it at 40 PSI with a drill and have a brass needle valve to control pressure.
I built an oil alarm which sounds if pressure drops below 20 PSI. I built the ignition box using a power transistor circuit found on the internet. I have boost and oil pressure gauges. For exhaust temps, I have a K-Type thermocouple plugged into a Craftsman meter. Without pushing the turbine, there is about 8 PSI of boost and 950*F EGT. I have since torn it all apart to build a new burner (now that I can weld) because it's too small, and it does not always light when I want it to. Ignition is sometimes very scary! I start it with a shop vac. To control the fuel, I use an oxy-acetylene regulator and a shut-off valve.
Future plans for this turbine include a new combustor now that I have a welder and steel. Also, I am building an infrared tachometer and will use the same multimeter as it will measure frequency. Future plans for a 2nd turbine will utilize my new Borg Warner T04B that I bought on eBay. People are always asking, "Why???" I say, "If you have to ask why, you'll never understand." Thanks for all the motivation Don!! You have the very best DIY gas turbine site on the internet.”................ Jace Bigelow
