Posted on August 22, 2008
This project was sent by Jerry Listkowski of Poland. Jerry writes:

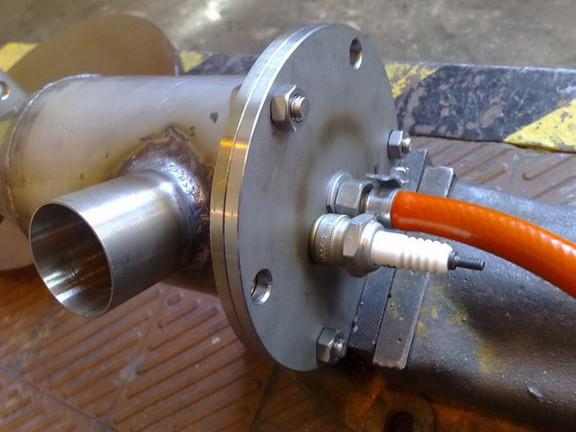

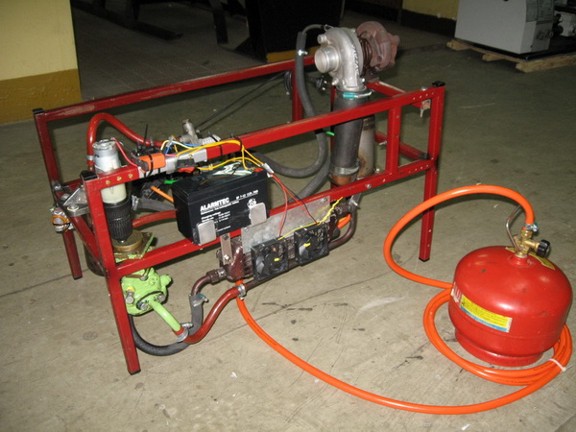

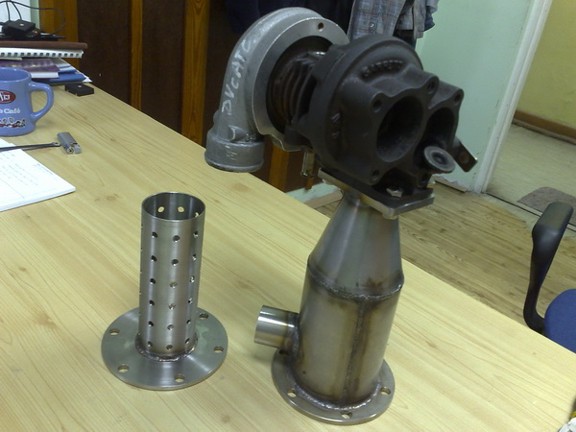

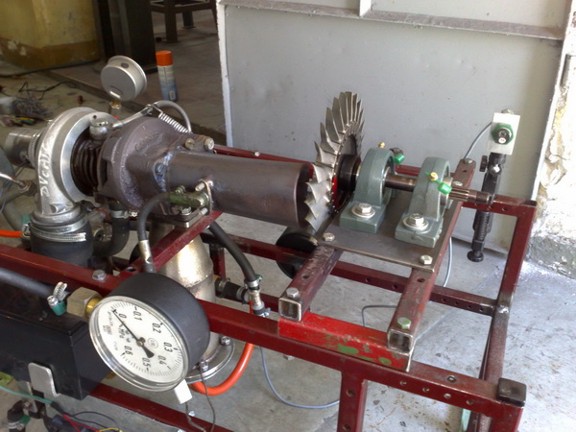

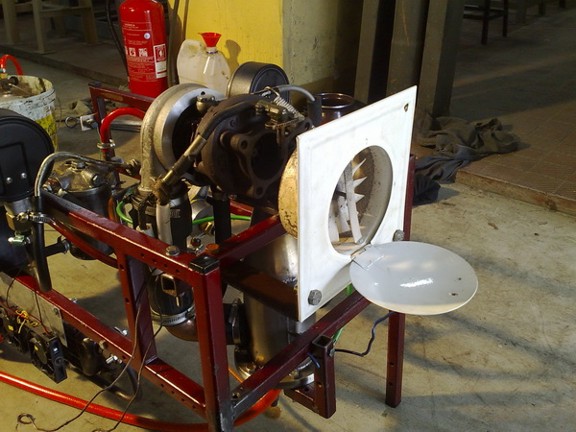

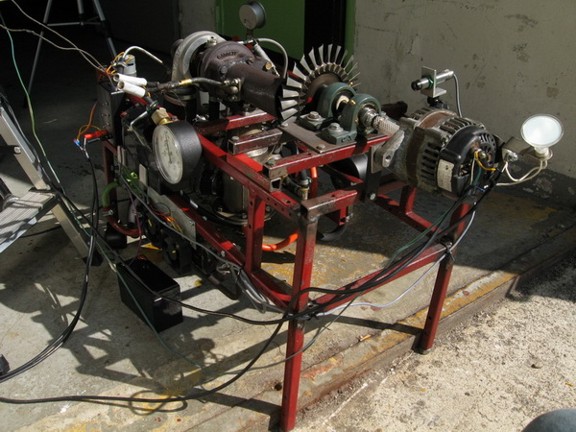

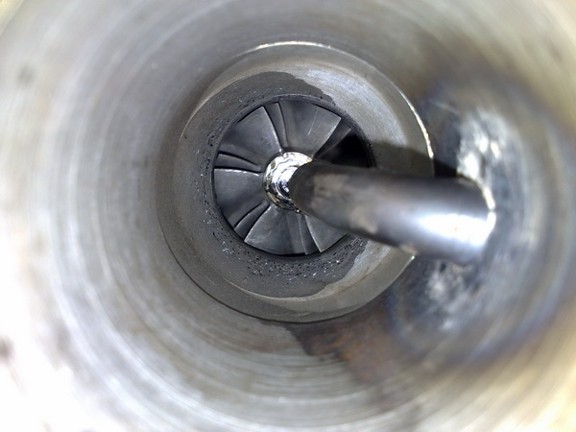

“Hi, My name is Jerry Listkowski and I'm an Polish (Gdynia city) turbine builder. Here are some photos of my engine which is based on the GR-1 engine. The turbo charger is a Garrett TB0267 from a Fiat Ducato 1.9TD.The oil pump is a oil pump from a K2-150 compressor. Most of the other parts were bought locally. The oil cooler comes from Opel Kadet. I used the GR-1 combustor formula for my combustion chamber which works perfectly. Max power is 18~19 PSI @ 640 deg. C EGT. Max Rpm I have run it about 185,000. I am running propane gas for fuel. Future plans for this turbine include a new power turbine.
Thanks for all the motivation Don!! You have the very best DIY gas turbine site on the internet.”
See details: Silniki Turbinowe - Turbojet
Kind regards
Jerry
Thanks so much for sending me the photos Jerry!!! Don G.
|
